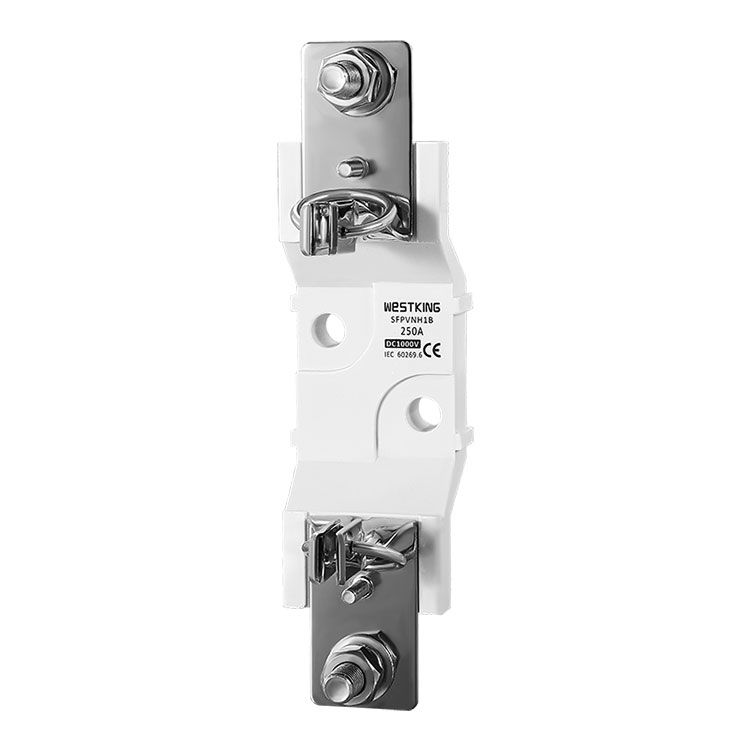

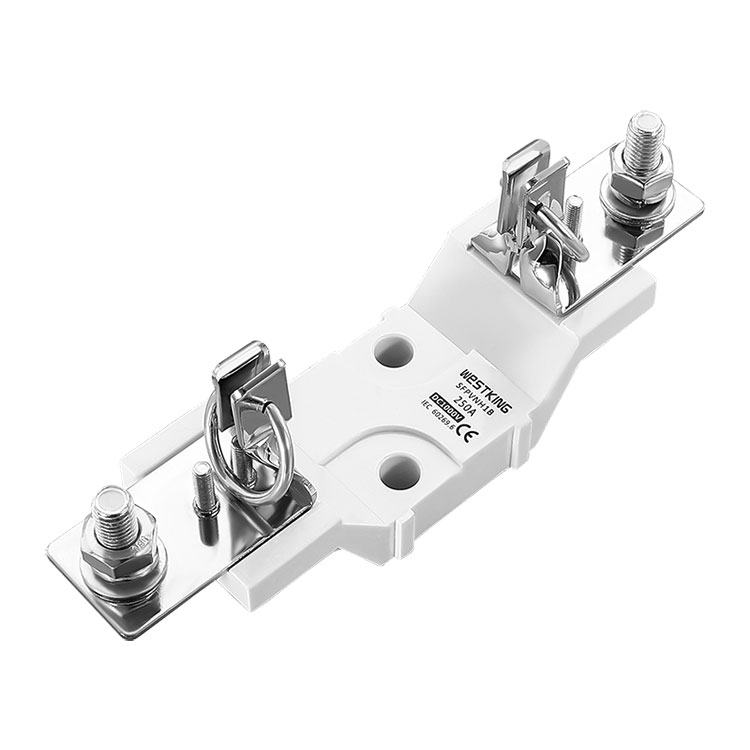

1000Vdc NH1 PV Fuse Base

WESTKING's NH GPV fuse-bases 1000Vdc NH1 PV Fuse Base, ranging from 1000Vdc to 1500V and available in NH1, NH1XL, NH2XL, and NH3XL sizes, serve as single-phase fuse-bases with screw connections and open configurations. Crafted from RoHS-compliant materials and adhering strictly to IEC standards, these fuse-bases guarantee outstanding performance and safety, offering peace of mind in photovoltaic installations.

Send Inquiry

Product Description

WESTKING's NH GPV fuse-bases 1000Vdc NH1 PV Fuse Base, available in 1000Vdc up to 1500V in sizes NH1, NH1XL, and NH2XL NH3XL, are single-phase fuse-bases that feature screw connections and open designs. These fuse-bases are manufactured using materials that comply with RoHS regulations and adhere to IEC standards, ensuring excellent performance and safety.Moreover, WESTKING offers these high-quality fuse-bases at competitive prices, providing customers with an advantage in terms of both performance and affordability. These fuse-bases are ideal for various applications, including photovoltaic systems, and can be easily installed and maintained due to their user-friendly design.


Technical data

?Rated voltage: 1000Vdc or 1100Vdc
?Rated currents: 250A
?Product Size: NH0 gPV fuses links
?Rated breaking capacity: 50kA
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C
?Rated insulation voltage: 6kV


Standards

IEC/EN 60269-1

IEC/EN 60269-2

UL4248-1 Fuse holders

UL4248-19 Photovoltaic fuse holders


1000Vdc NH1 PV Fuse Base KEY FEATURES/ADVANTAGES

The insulating base is made of high-strength DMC material.

The fuse base features heat-treated durable springs.

It passes 48-hour salt spray testing.

The fuse base can withstand higher torque requirements than the standard.


1000Vdc NH1 PV Fuse Base APPLICATIONS

Photovoltaic applications up to 1100VDC

Protection at the PV string/array level

Inverter applications

Combiner box operation


1000Vdc NH1 PV Fuse Base Certifications

is09001 iatf16949

TUV CE


Origin

China


ELECTRICAL CHARACTERISTICS

type led indicator Net weigh packing
SFPVNH1B NO 400g 1pcs/box


Dimensions (mm)


Compatible FUSE bases
