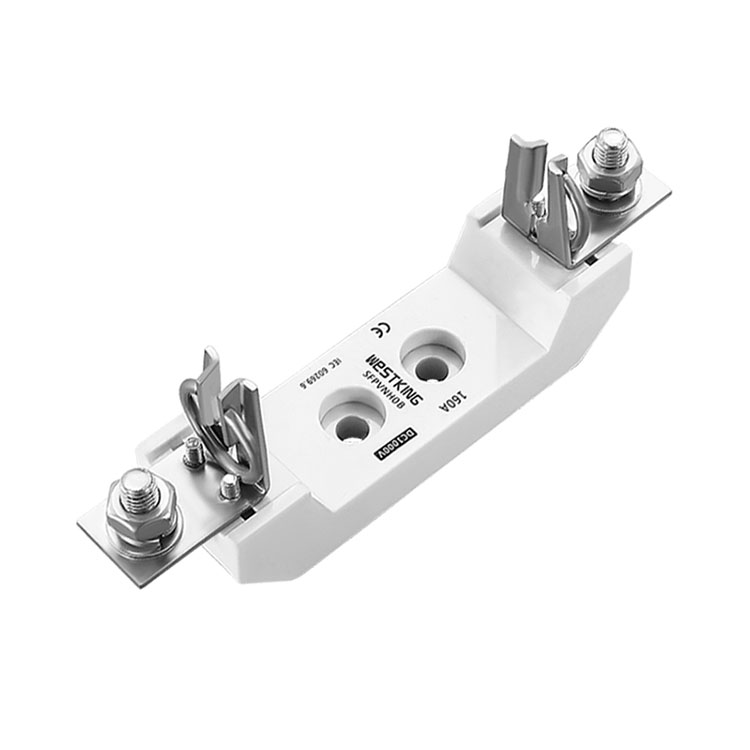

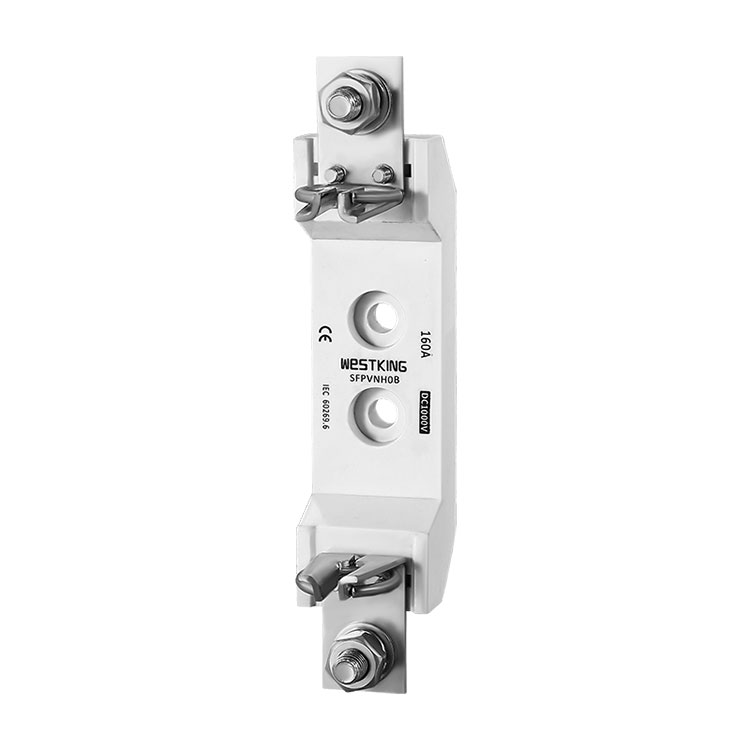

1000Vdc NH0 PV Fuse Base

Engineered to complement SFPVNH fuse links in photovoltaic settings, WESTKING's SFPVNH0 NH PV Fuse bases 1000Vdc NH0 PV Fuse Base showcase a robust construction. These bases incorporate a high-strength DMC material in their insulating base, delivering exceptional heat resistance and achieving a V0-rated flame retardancy, ensuring enhanced safety and reliability in photovoltaic applications.

Send Inquiry

Product Description

WESTKING's SFPVNH0 NH PV Fuse bases 1000Vdc NH0 PV Fuse Base are designed to work with SFPVNH fuse links in photovoltaic applications. They feature a high-strength DMC material for their insulating base, offering excellent heat resistance and V0-rated flame retardancy. Compared to thermoplastic materials, DMC provides superior environmental resistance, making it safer. The fuse base uses tin-plated copper contacts and is securely installed via screws. Compliance with ROHS regulations and manufacturing according to the IEC60269.1 standard make these fuse bases a reliable choice for photovoltaic installations.


Technical data

?Rated voltage: 1000Vdc or 1100Vdc
?Rated currents: 100A
?Product Size: NH0 gPV fuses links
?Rated breaking capacity: 50kA
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C
?Rated insulation voltage: 6kV


Standards

IEC/EN 60269-1

IEC/EN 60269-2

UL4248-1 Fuse holders

UL4248-19 Photovoltaic fuse holders


1000Vdc NH0 PV Fuse Base KEY FEATURES/ADVANTAGES

Screw mounting

high pressure springs, and Tin-plated contacts make up the DMC insulating bases.


1000Vdc NH0 PV Fuse Base APPLICATIONS

Photovoltaic applications up to 1100VDC

Inverter applications

Combiner box operation


Certifications

is09001 iatf16949


Origin

China


ELECTRICAL CHARACTERISTICS

type led indicator Net weigh packing
SFPVNH0B NO 205g 3pcs/box


Dimensions (mm)


Compatible FUSE bases
