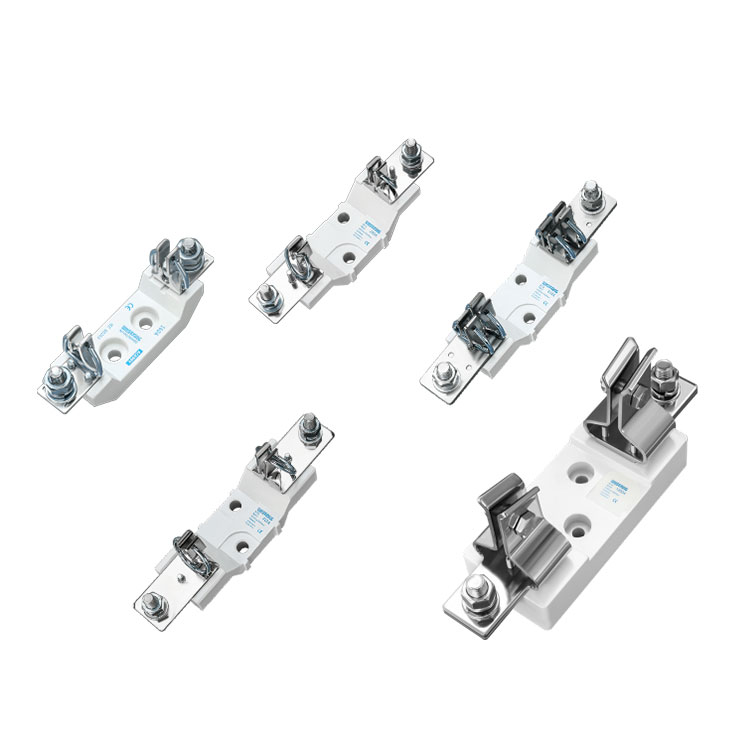

NT00 NT1 NT2 NT3 NT4 Fuse Bases

Westking's NH Fuse Base is a mounting base designed for NH series fusesNT00 NT1 NT2 NT3 NT4 Fuse Bases. Typically made from DMC (Diaminomethylcyclohexane), these bases offer excellent insulation properties and resistance to aging. Their design prioritizes safety, protection, and ease of installation, providing a compact and simple solution for fuses in low-voltage applications.

Send Inquiry

Product Description
NT00 NT1 NT2 NT3 NT4 Fuse Bases



Westking's NH Fuse Base features include:

Safety: The NH fuse base provides reliable and high-performance contact characteristics with a silver-plated coating, ensuring safe use in low-voltage applications.

Protection: The NH fuse base offers a compact and simple solution for NH fuses, serving as a protective component in low-voltage applications.

Easy Installation: The plastic NH fuse bases, such as OFAZ and OFAX, are suitable for screw mounting. A variety of cable terminals make the installation quick and straightforward.

Compatibility: The NH fuse base is compatible with similar products on the market, facilitating replacement.


Technical data

Type Rated voltage Rated  currents
NH00(NT00)-Amp 500VAC/690VAC/250VDC 160A
NH1(NT1)-Amp 500VAC/690VAC/440VDC 250A
NH2(NT2)-Amp 500VAC/690VAC/440VDC 400A
NH3(NT3)-Amp 500VAC/690VAC/440VDC 630A
NH4(NT4)--Amp 400VAC/690VAC/440VDC 1250A


Standards

IEC60269.1

IEC60269.2

DIN43620

RoHS compliant

REACH declaration available upon request


NT00 NT1 NT2 NT3 NT4 Fuse Bases KEY FEATURES/ADVANTAGES

High breaking capacity

Various ratings for current and voltage levels

Simple structure, easy to install and maintain

Good environmental adaptability and durability


NT00 NT1 NT2 NT3 NT4 Fuse Bases APPLICATIONS

Industrial Power Distribution Systems:

Building Electrical Systems

Power Systems

Renewable Energy Systems

Transportation

Electronic Equipment and Control Systems


Certifications

? is09001 iatf16949 CCC


Origin

China

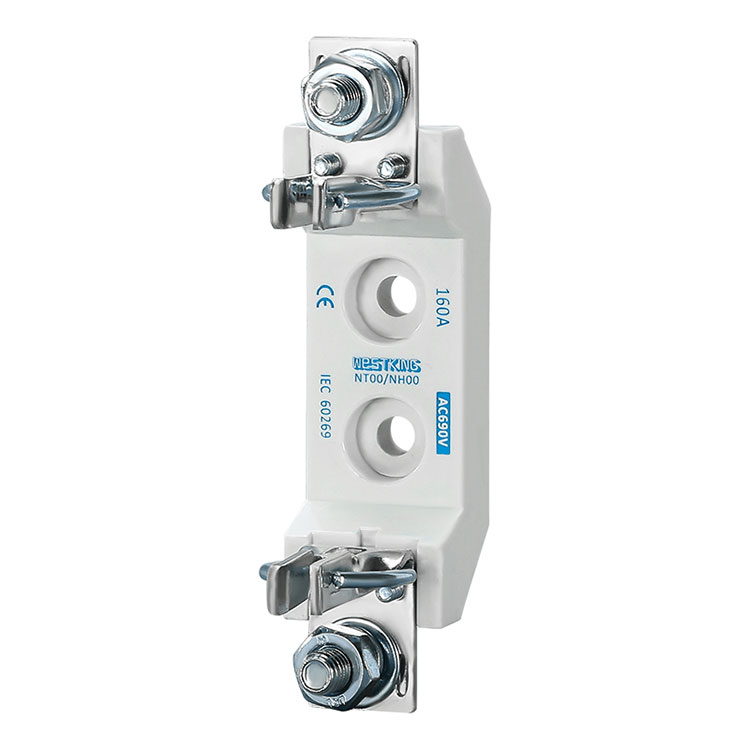

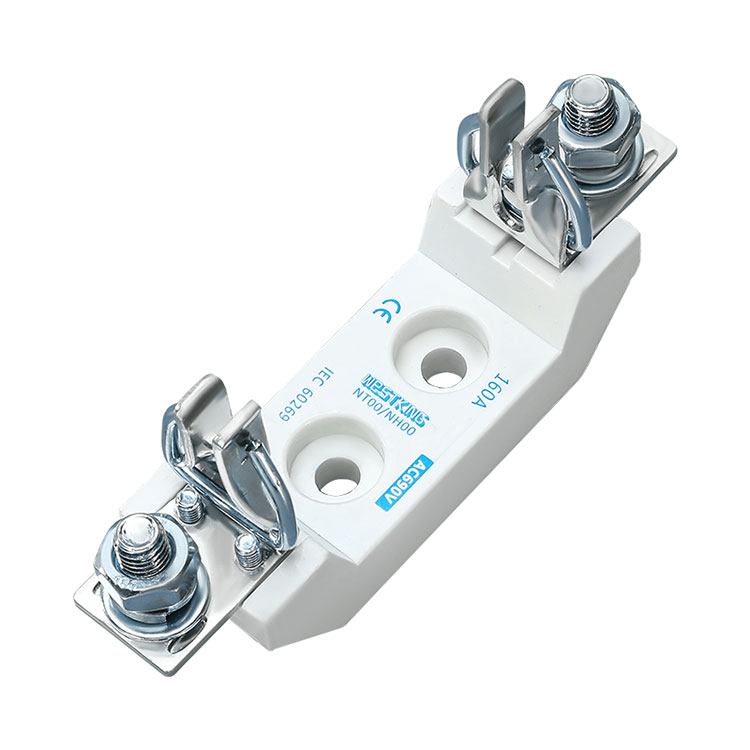

NH00(NT00) knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH00(NT00) Sist101 Fuse bases 160A 500VAC/690VAC/250VDC 150


NH00(NT00)-3P knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH00(NT00)-3P Sist101 Fuse bases 160A 500VAC/690VAC/250VDC 500

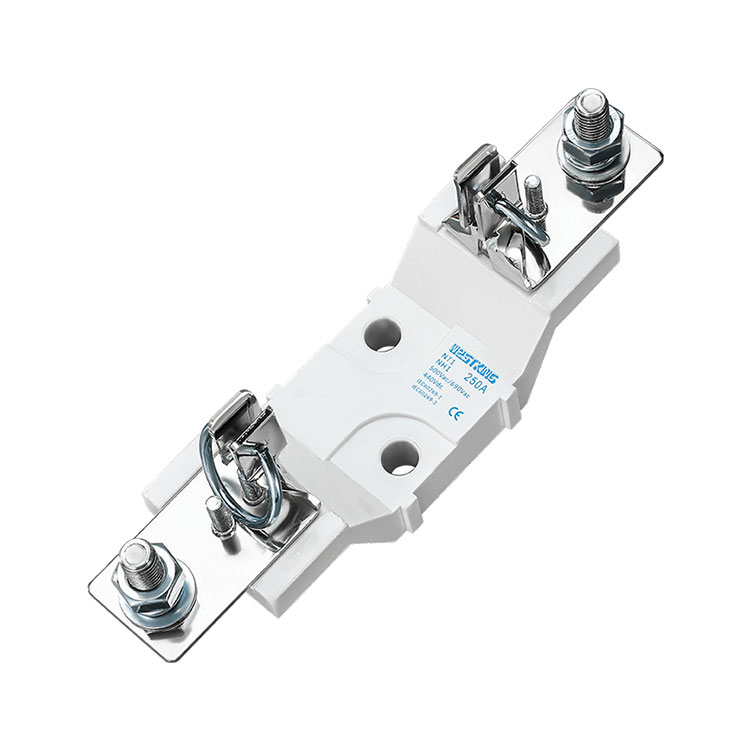

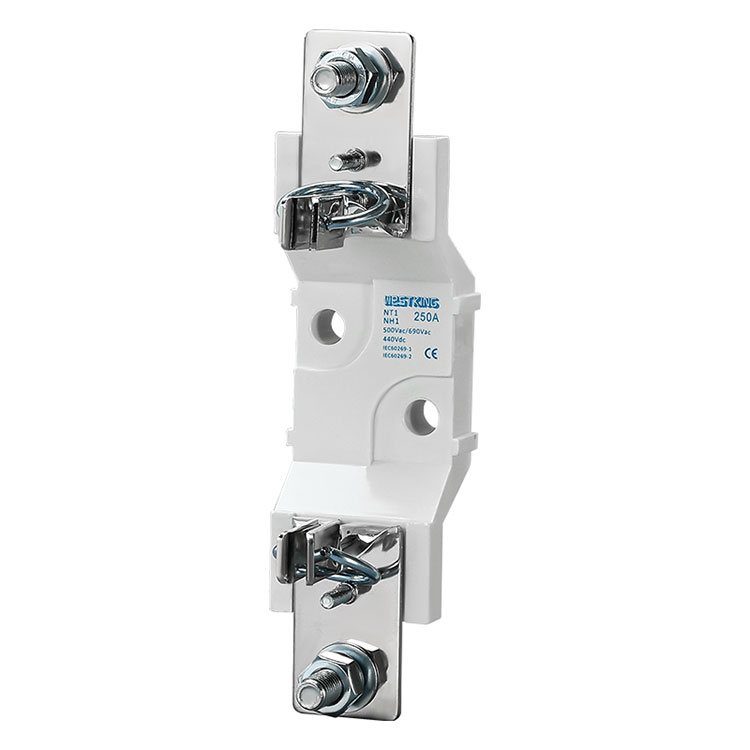

NH1(NT1) knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH1(NT1) Sist 201  Fuse bases 250A AC500V/AC690V/DC440V 400

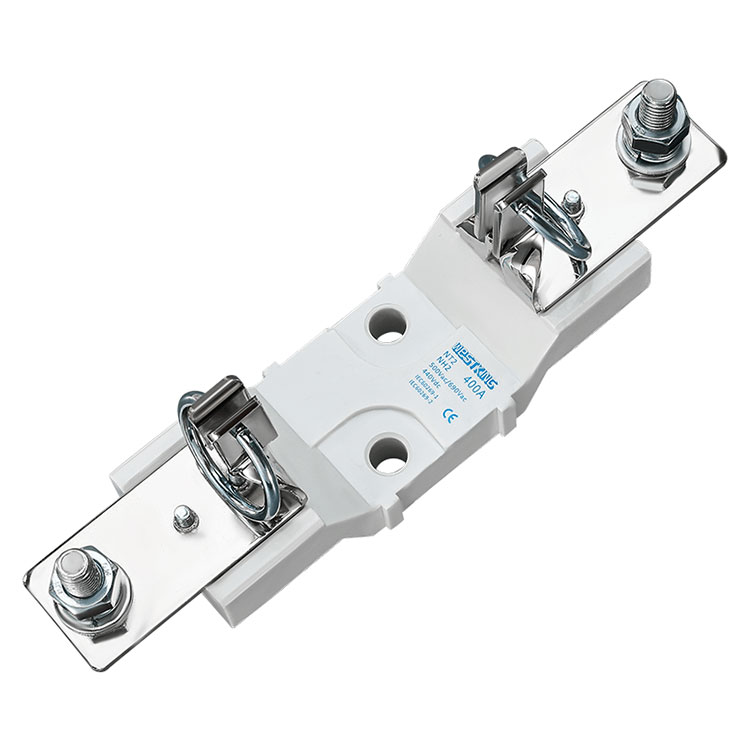

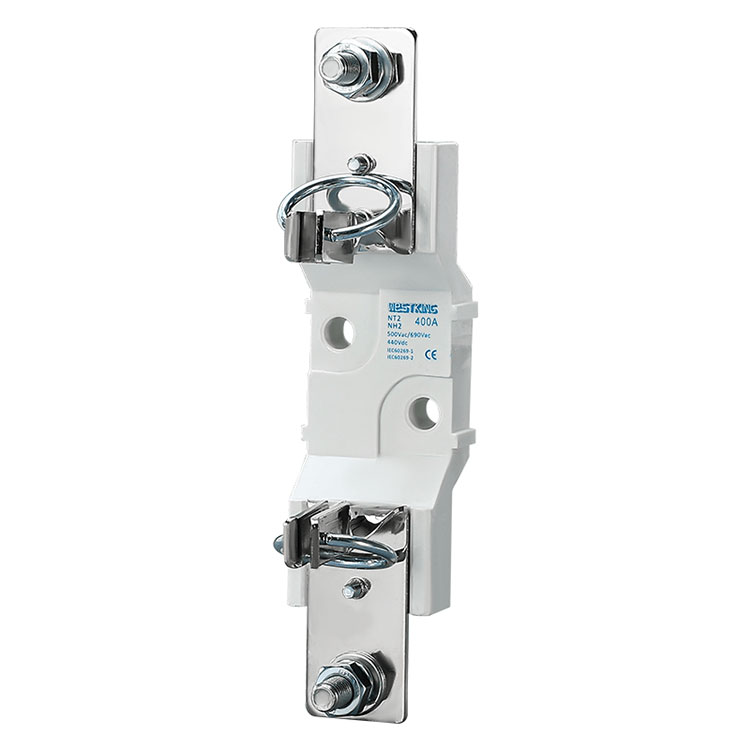

NH2(NT2) knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH2(NT2) Sist401 Fuse bases 400A 500VAC/690VAC/440VDC 500

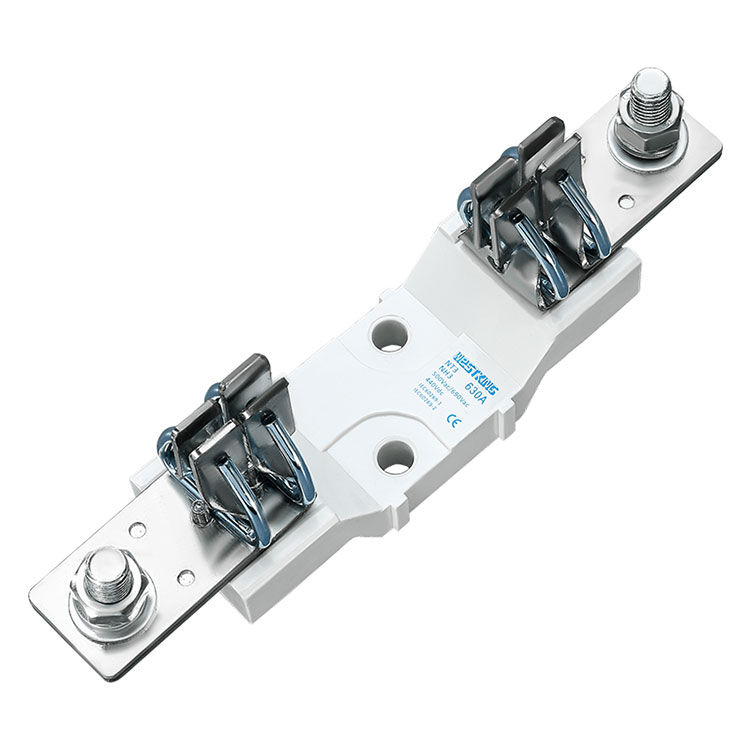

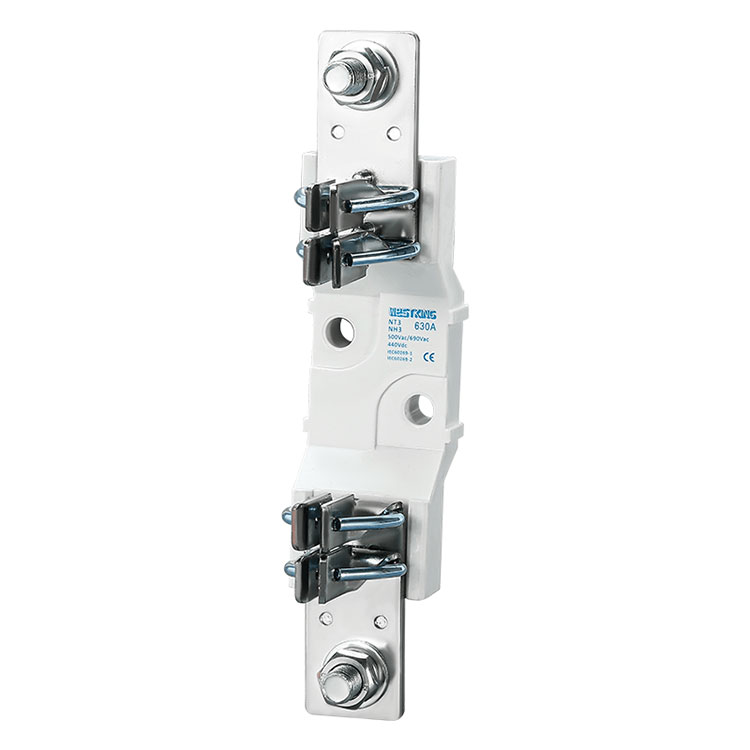

NH3(NT3) knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH3(NT3) Sist601 Fuse bases 630A 500VAC/690VAC/440VDC 710

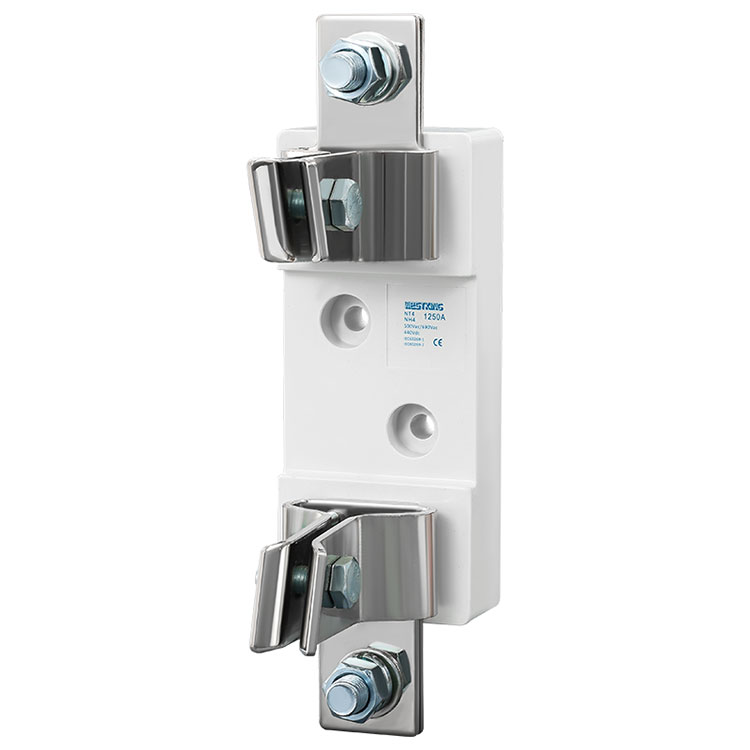

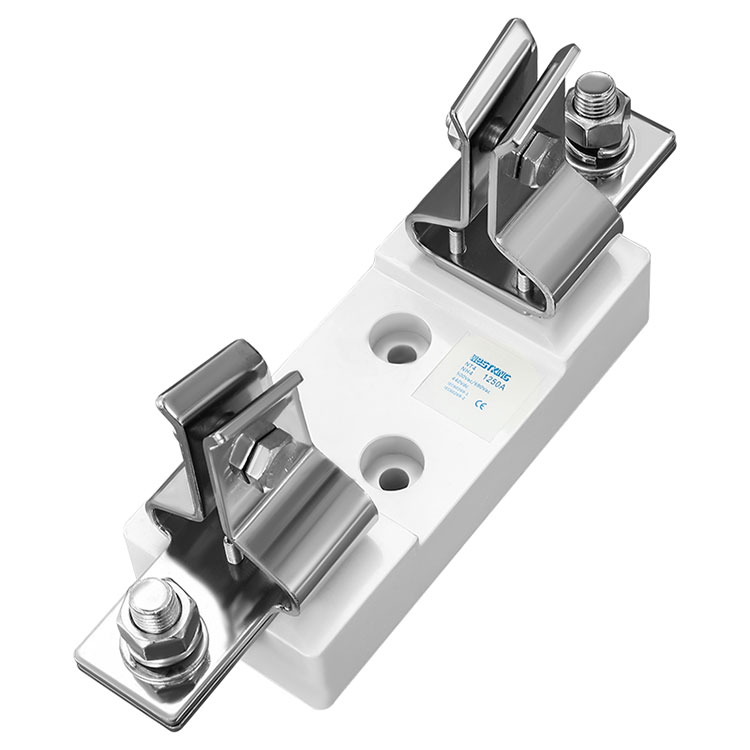

NH4(NT4) knife fuse bases

Type Rated current(A) Rated voltage Weight(g)
NH4(NT4) Sist1001  Fuse bases 1250A AC400V/AC690V/DC440V 2300
