Westking EVFUSE? series H EV Fuse 150VDC 200VDC Series has developed two customized protection solutions for electric vehicles (EV), namely H-type and J-type fuses. The Westking electric vehicle fuses are designed and developed based on interactions with over 20 new energy EV enterprises. These fuses fully comply with the application conditions of new energy electric vehicles, featuring a bolted tightening structure and high-alumina high-temperature ceramic materials. These fuses offer market-leading compactness, impact resistance, and lifetime durability simulation functions.

Send Inquiry

Product Description



H TYPE SERIES 150VDC 200VDC

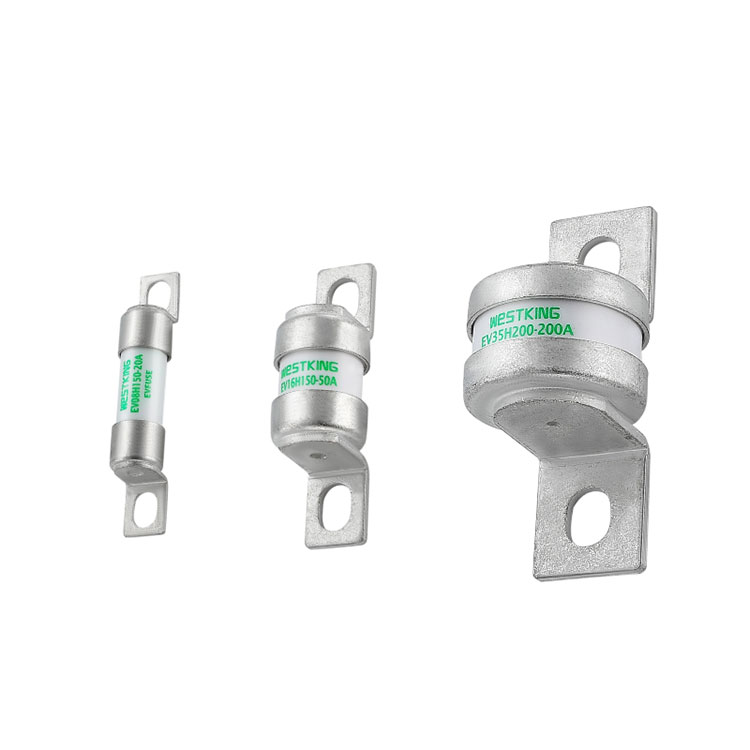

WESTKING EV08H150, EV16H150, and EV35H200 are mainly suitable for small electric vehicles, city cars, or electric yachts as battery pack protection, offering safe and reliable performance.


Technical data

Type Rated voltage Rated currents
EV08H150-(Amp) 150VDC 6A-20A
EV16H150-(Amp) 150VDC 20A-180A
EV35H200-(Amp) 200VDC 200A-500A
?Utilization category: gEV
?Rated breaking capacity: 20 kA
?Time constant: 2±0.5ms
?Ambient temperature : -40°C ... 125°C


Standards

ISO8820-8

JASO D622

Manufactured under ITAF16949 quality system for compliance with automotive requirements

RoHS compliant

REACH declaration available upon request


KEY FEATURES/ADVANTAGES

Double protection against overload and short circuit

Low temperature rise and power consumption, extending battery range

High breaking capacity


APPLICATIONS

Battery pack protection

BDU and PDU

Battery Junction Box for auxiliaries

EV/HEV

Electrical Energy Storage

Battery charger

Supercapacitor pack protection

Backup protection for DC relay / disconnector / switch

Maintenance Safety Disconnect (MSD)


Certifications

is09001 iatf16949


Origin

China

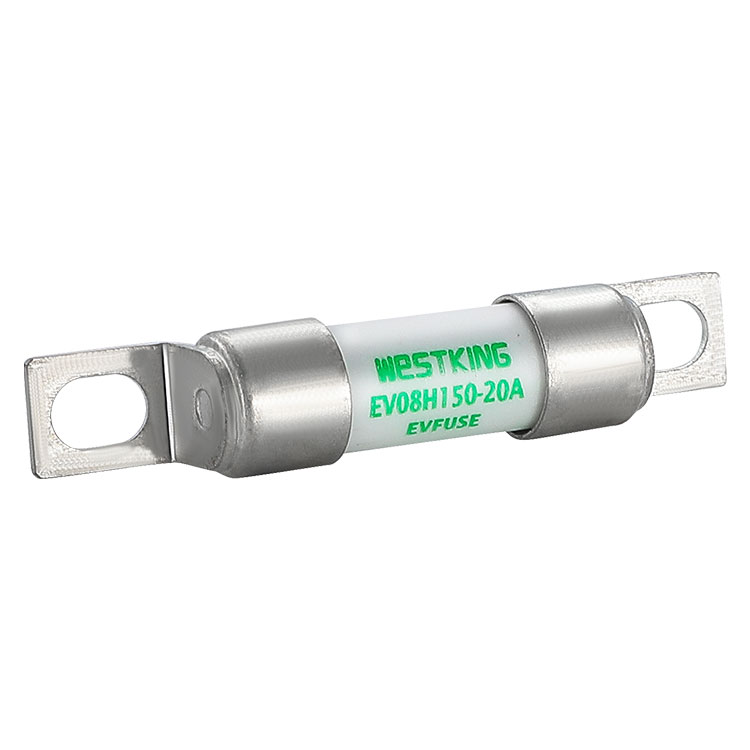

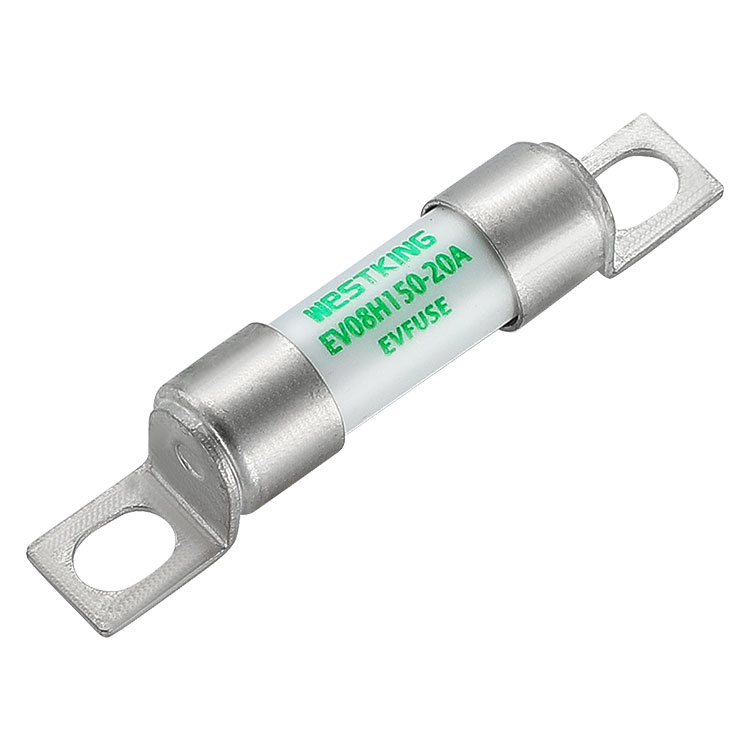

EV FUSE 150VDC EV08H150 protection for EV and battery pack

Type I2t (A2s) Power loss 0.5 In(w) Net weight (g)
Melting Clearing
EV08H150-06A 2 6 0.30 6.01
EV08H150-10A 3.8 12 0.75
EV08H150-12A 7 22 0.80
EV08H150-16A 20 50 0.85
EV08H150-20A 25 80 1.2

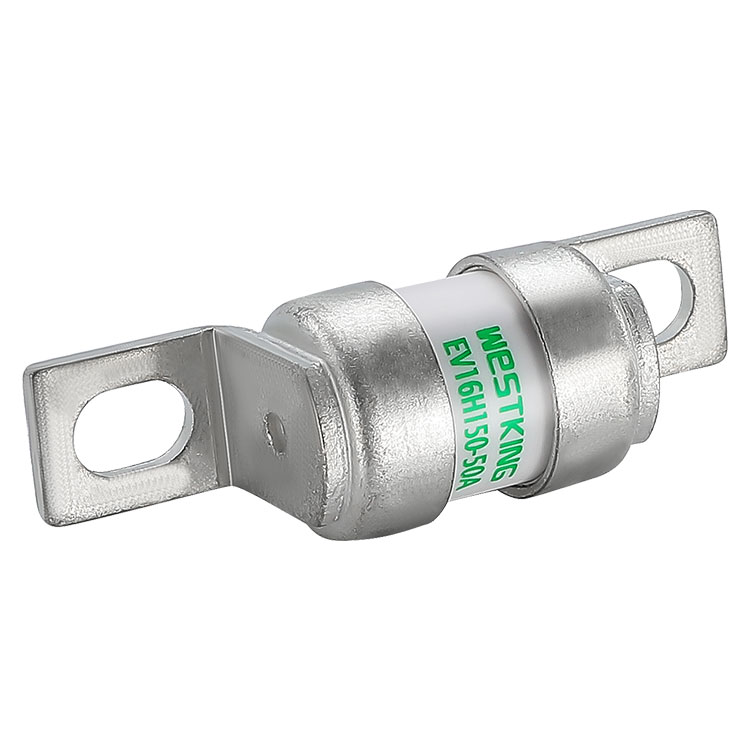

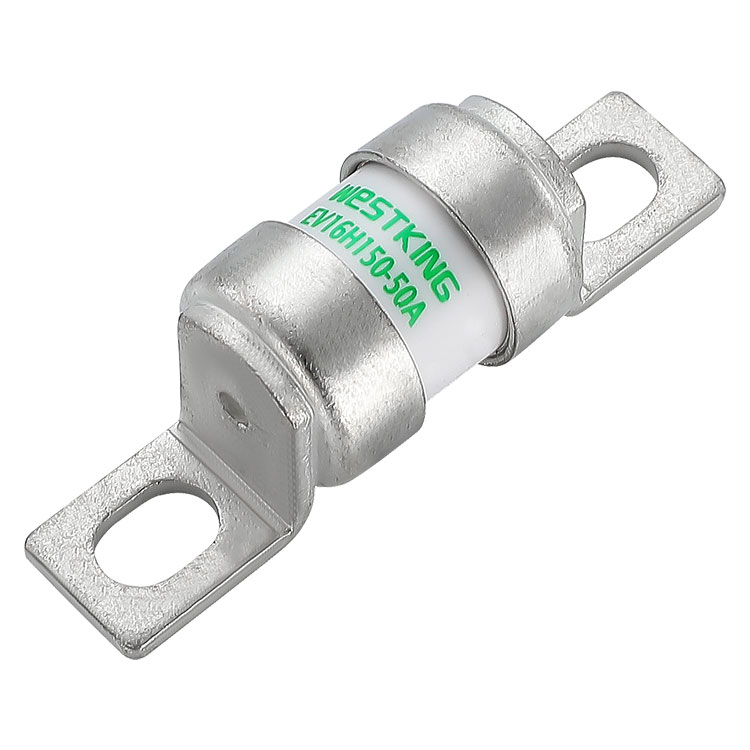

EV FUSE 150VDC EV16H150 protection for EV and battery pack

Type I2t (A2s) Power loss 0.5 In(w) Net weight (g)
Melting Clearing
EV16H150-20A 12 100 0.45 32
EV16H150-25A 18 120 0.60
EV16H150-32A 32 200 0.68
EV16H150-35A 50 320 0.75
EV16H150-50A 100 500 1.05
EV16H150-63A 180 1100 1.35
EV16H150-80A 300 1900 2.10
EV16H150-100A 600 3800 2.78
EV16H150-125A 625 3900 3.38
EV16H150-160A 1100 7000 4.28
EV16H150-180A 1600 12000 5.33

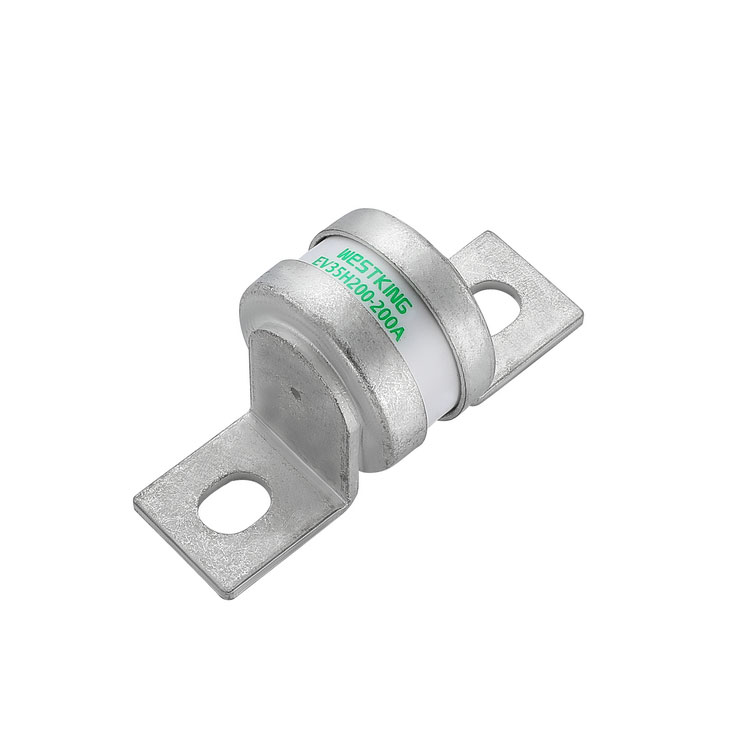

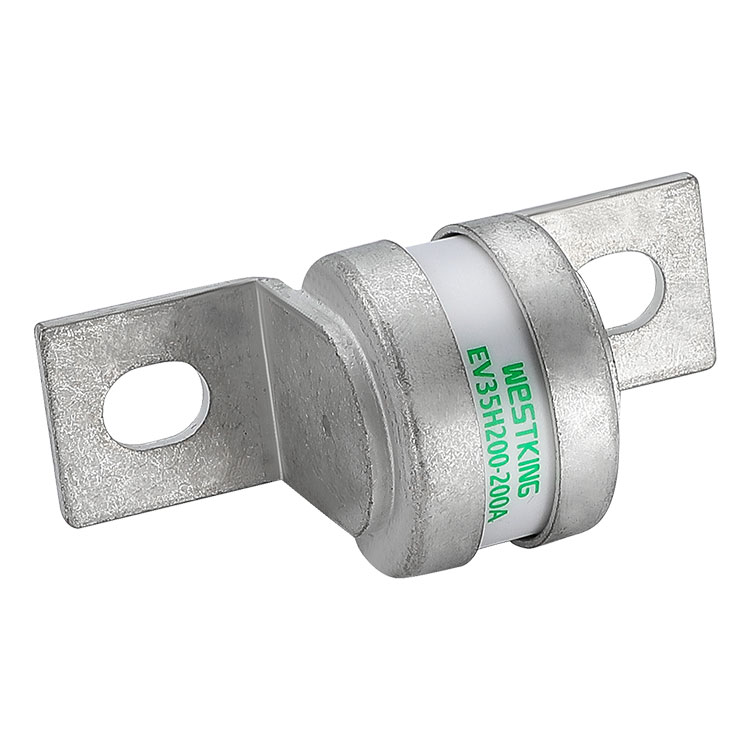

EV FUSE 200VDC EV35H200 protection for EV and battery pack

Type I2t (A2s) Power loss 0.5 In(w) Net weight (g)
Melting Clearing
EV35H200﹣200A 5200 20500 3.00 154.3
EV35H200﹣250A 7000 30500 3.90
EV35H200﹣300A 10000 40000 4.50
EV35H200﹣350A 15000 60000 5.10
EV35H200﹣400A 20000 82000 5.50
EV35H200﹣450A 23000 120000 7.70
EV35H200﹣500A 28000 180000 9.80


EV FUSE t-I characteristics


temperature correction coefficient chart


H EV Fuse 150VDC 200VDC Series Description:

1.The fuse operates normally within the temperature range of -5°C to 40°C, and no additional correction is required.

2.The allowable usage conditions are -40°C to 85°C.

3.Within the range of allowable usage conditions, refer to this table.


Hot Tags: H EV Fuse 150VDC 200VDC Series, China, Manufacturer, Supplier, Factory, Quality, Customized
