500VDC HSFJ500 High Speed Fuse

Westking's HSFJ500 series DC fuses 500VDC HSFJ500 High Speed Fuse are designed to offer reliable protection for various power systems. These fuses are bolt-connected cylindrical fast-acting fuses that are ideal for semiconductor devices such as inverters, rectifiers, and converters, as well as battery and motor devices. They find their application in industries like rail transit and charging stations.

Send Inquiry

Product Description




Westking's HSFJ500 series DC fuses 500VDC HSFJ500 High Speed Fuse offer fast action response, low temperature rise and power consumption, good anti-vibration performance, reliable short-circuit protection, and easy installation. These features provide comprehensive power system protection for optimal performance and safety.


500VDC HSFJ500 High Speed FuseTechnical data

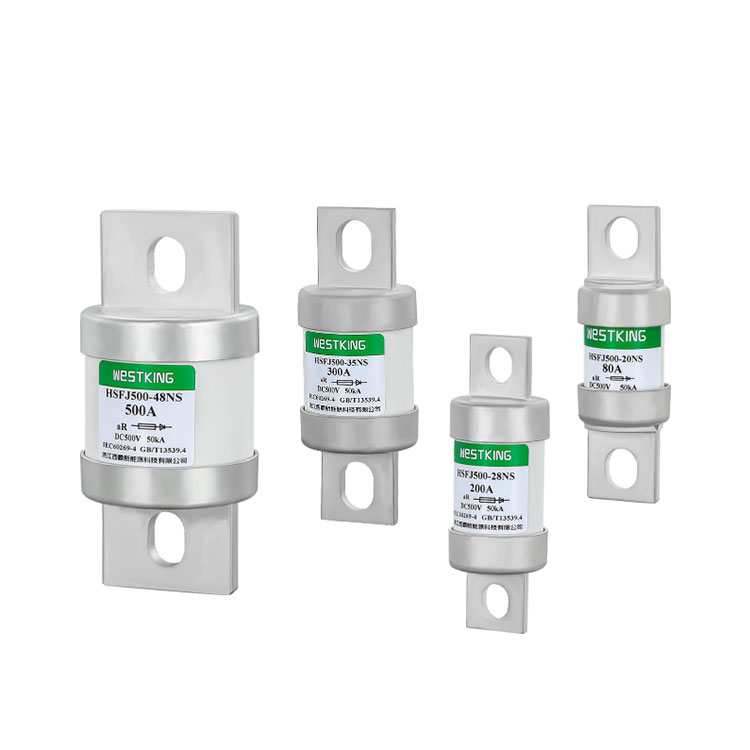

Type Rated voltage Rated  currents
HSFJ500-20-NS-(Amp) 500VDC/750VAC 50A,60A,70A,80A,100A,125A,150A
HSFJ500-28-NS-(Amp) 500VDC/750VAC 100A,125A,150A,175A,200A,250A
HSFJ500-35-NS-(Amp) 500VDC/750VAC 200A,250A,300A,350A,400A
HSFJ500-48-NS-(Amp) 500VDC/750VAC 300A,350A,400A,450A,500A,550A,600A

Utilization category:aR

Rated breaking capacity:50kA


Standards

IEC/EN 60269-4

RoHS Compliant


500VDC HSFJ500 High Speed FuseKEY FEATURES/ADVANTAGES

Fast Power Cutoff: Fast-acting fuses provide quick current termination, minimizing accident losses.

Reliability: Bolt-connected design boosts stability and reliability in harsh environments.

Easy Installation: Standardized bolt-connected fuse design for simple installation and maintenance.

Wide Applicability: Compatible with various power equipment, including DC common buses, DC drive power converters/rectifiers, reduced-rated voltage starters, and high-voltage traction inverters.

Safety: Safeguard equipment and personnel during faults.

Environmental Consciousness: Environment-friendly materials used in manufacturing.

Energy Efficiency: High power cutoff speed contributes to energy conservation.


500VDC HSFJ500 High Speed FuseAPPLICATIONS

The WESTKING'S HSFJ500 series of North American-style bolt-connected high-speed fuses are primarily designed for the protection of DC common buses, DC drive power converters/rectifiers, reduced-rated voltage starters, and high-voltage traction inverters.

These fuses play a vital role in electrical systems, as they can quickly cut off the power supply in cases of current overload or short circuits.


500VDC HSFJ500 High Speed FuseCertifications

? is09001 iatf16949


Origin

China

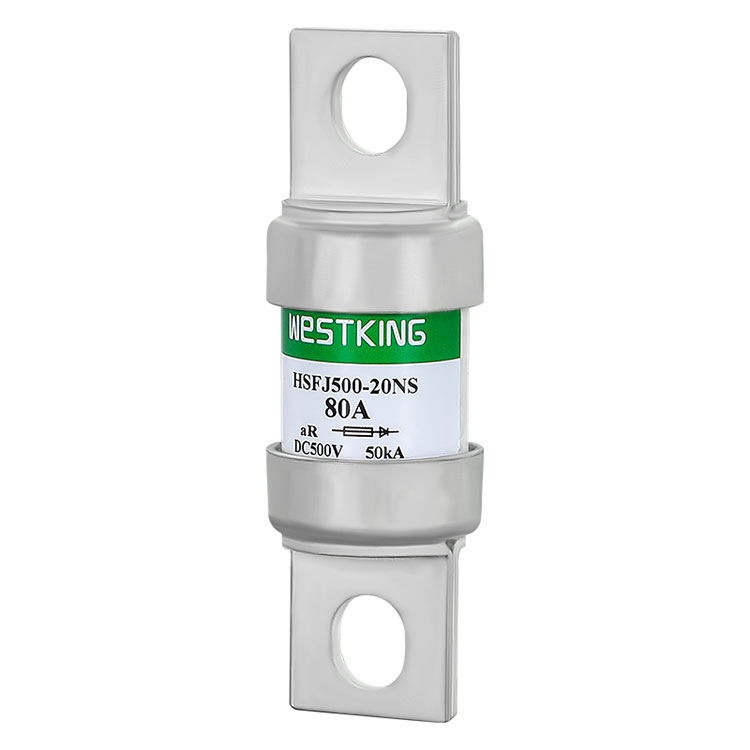

500VDC HIGH SPEED FUSE-HSFJ500-20-NS

Type I2t (A2s) Power loss 1.0 In(w) Mounting bolt/ torque
Melting Clearing
HSFJ500-20-LS-50A 120 360 8.0 Install bolt M8 Recommended mounting torque 12.0 N?m
HSFJ500-20-LS-60A 220 600 10.0
HSFJ500-20-LS-70A 340 950 14.0
HSFJ500-20-LS-80A 450 1500 17.0
HSFJ500-20-LS-100A 760 2800 20.5
HSFJ500-20-LS-125A 1140 4600 25.0
HSFJ500-20-LS-150A 2050 6460 30.0

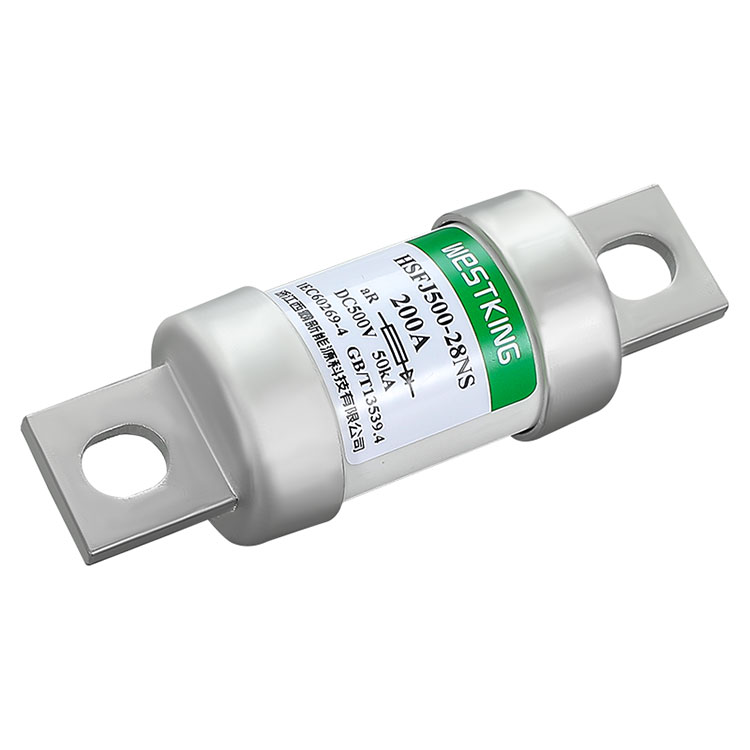

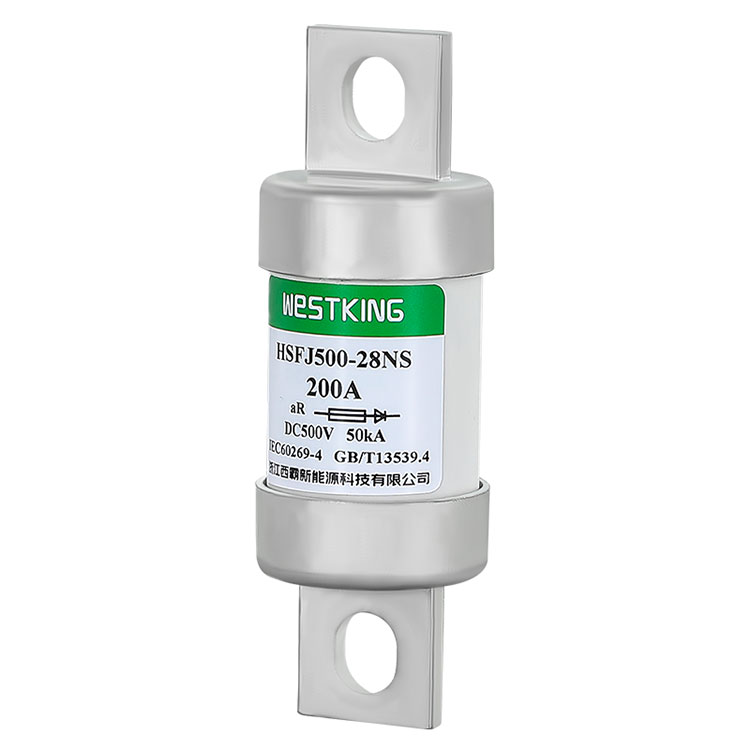

500VDC HIGH SPEED FUSE-HSFJ500-28-NS

Type I2t (A2s) Power loss 1.0 In(w) Mounting bolt/ torque
Melting Clearing
HSFJ500-28-NS-100A 450 2100 17.0 Install bolt M8 Recommended mounting torque 12.0 N?m
HSFJ500-28-NS-125A 750 3300 23.5
HSFJ500-28-NS-150A 1000 4500 28.0
HSFJ500-28-NS-175A 1300 6000 33.0
HSFJ500-28-NS-200A 2250 11100 38.5
HSFJ500-28-NS-250A 4900 21500 46.0

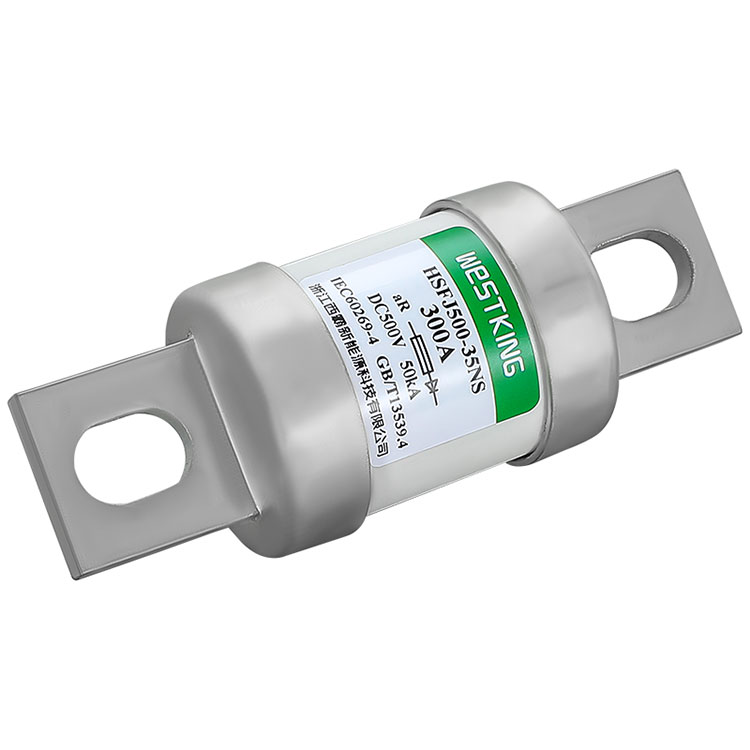

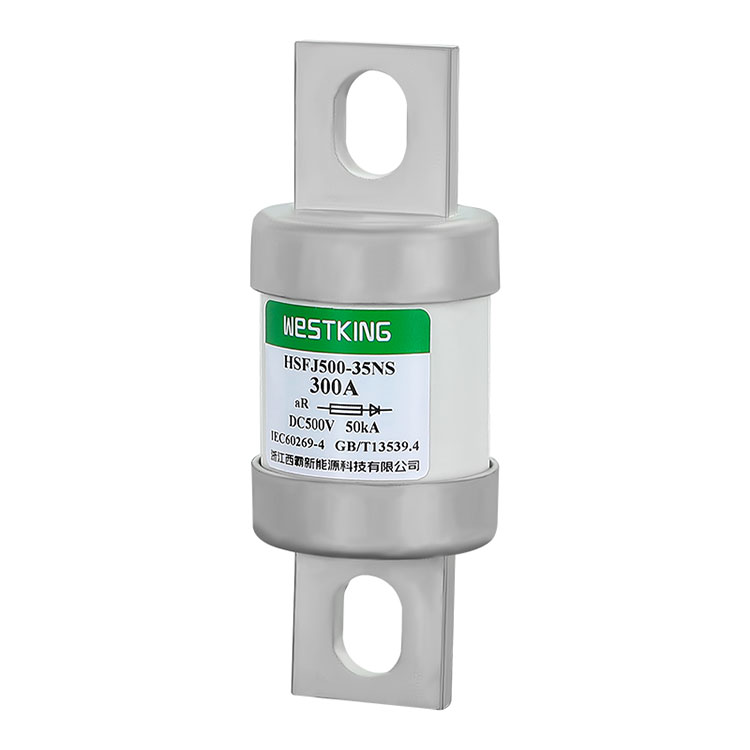

500VDC HIGH SPEED FUSE-HSFJ500-35-NS

Type I2t (A2s) Power loss 1.0In(w) Mounting bolt/ torque
Melting Clearing
HSFJ500-35-NS-200A 2250 11100 37.0 Install bolt M10 Recommended mounting torque 20.0 N?m
HSFJ500-35-NS-250A 6100 30000 40.0
HSFJ500-35-NS-300A 8600 48000 48.0
HSFJ500-35-NS-350A 12500 70500 57.5
HSFJ500-35-NS-400A 18000 91000 64.0

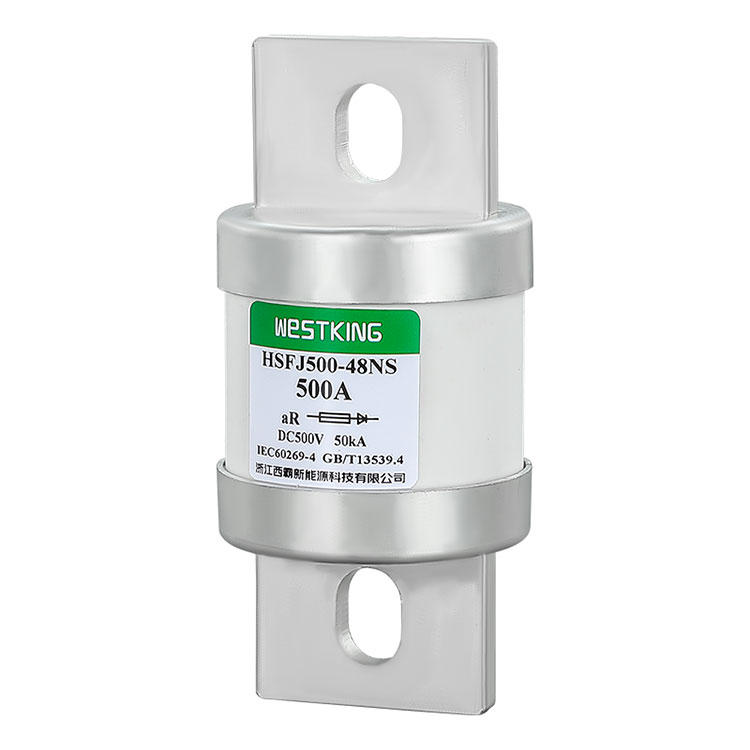

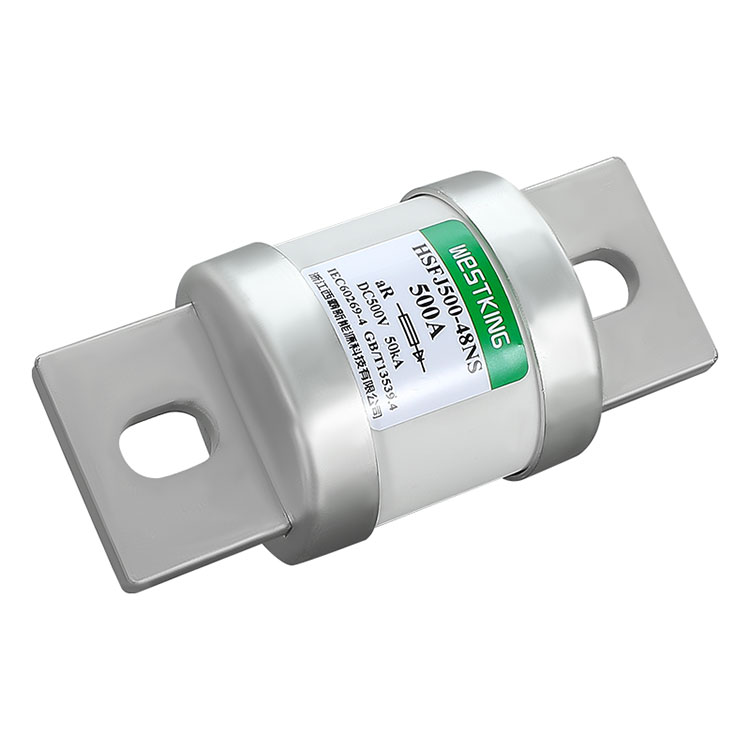

500VDC HIGH SPEED FUSE-HSFJ500-48-NS

Type I2t (A2s) Power loss 1.0In(w) Mounting bolt/ torque
Melting Clearing
HSFJ500-48-NS-300A 10600 45000 47.0 Install bolt M10 Recommended mounting torque 20.0 N?m
HSFJ500-48-NS-350A 14000 67000 55.0
HSFJ500-48-NS-400A 18500 96000 63.5
HSFJ500-48-NS-450A 22500 116000 72.0
HSFJ500-48-NS-500A 28000 140000 81.5
HSFJ500-48-NS-550A 32500 176000 92.5
HSFJ500-48-NS-600A 37500 195000 105.0


Application Guide:

Ambient Temperature:

Normal operating conditions: Maximum ambient temperature not exceeding 40°C; 24-hour average temperature not exceeding 35°C, and the average value measured within the year is lower than this; minimum ambient temperature not below -5°C.

Allowable operating conditions: -40°C to 85°C.

Altitude:

Normal operating conditions: Installation altitude not exceeding 2000m.

Allowable operating conditions: 2000m to 4500m.

Atmospheric Conditions:

Normal operating conditions: Clean air, relative humidity does not exceed 50% at 40°C; higher humidity is allowed at lower temperatures; under these conditions, moderate condensation may occur occasionally due to temperature changes.

Allowable operating conditions: Relative humidity does not exceed 95% without obvious condensation.

Installation Conditions:

WESTKING'S FUSE should be installed horizontally or vertically according to the actual situation. When installing, ensure that the electrical clearance is not less than 8mm and the creepage distance is not less than 10mm. The installation conditions are as follows:

a) In places with no significant shaking and impact vibration;

b) In media without explosion hazards and containing no gases or dust that can corrode metals and destroy insulation;

c) In places without rain, snow, or ice invasion.

Packaging and Storage:

Packaging: Corrugated paper inner box, outer carton, with rain, moisture, and fragile safety marks.

Storage: Temperature -40°C to 40°C; relative humidity not exceeding 70% at 40°C, 80% at 30°C, and 90% at 20°C below; waterproof, avoid contact with liquid water and deformation due to moisture absorption; fireproof.

Use and Maintenance:

WESTKING'S FUSE should be regularly cleaned and maintained by dedicated personnel, inspect the status of fasteners, and ensure safe operation. When the fuse element melts, replace it with a fuse of the same specification, and pay attention to remove dust and other contaminants from the base.
