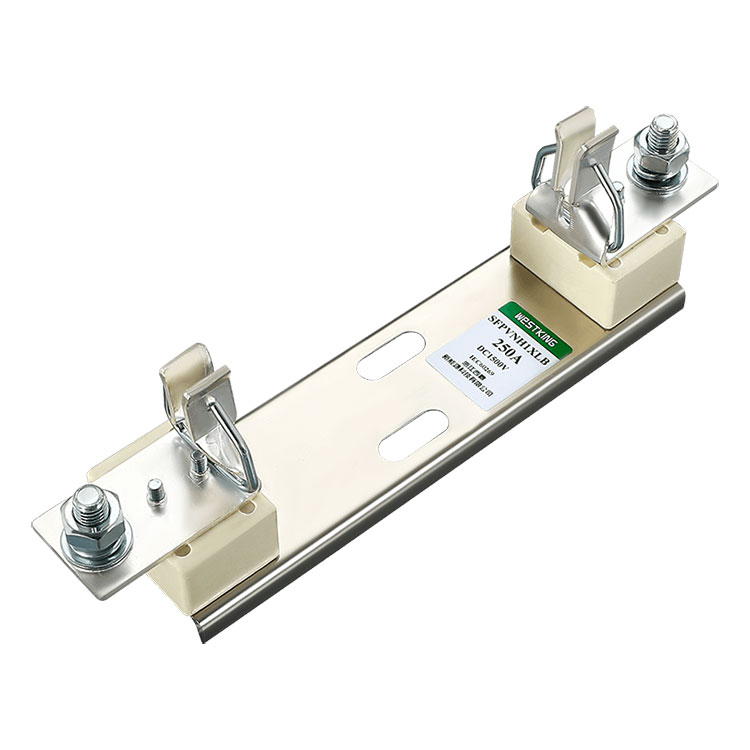

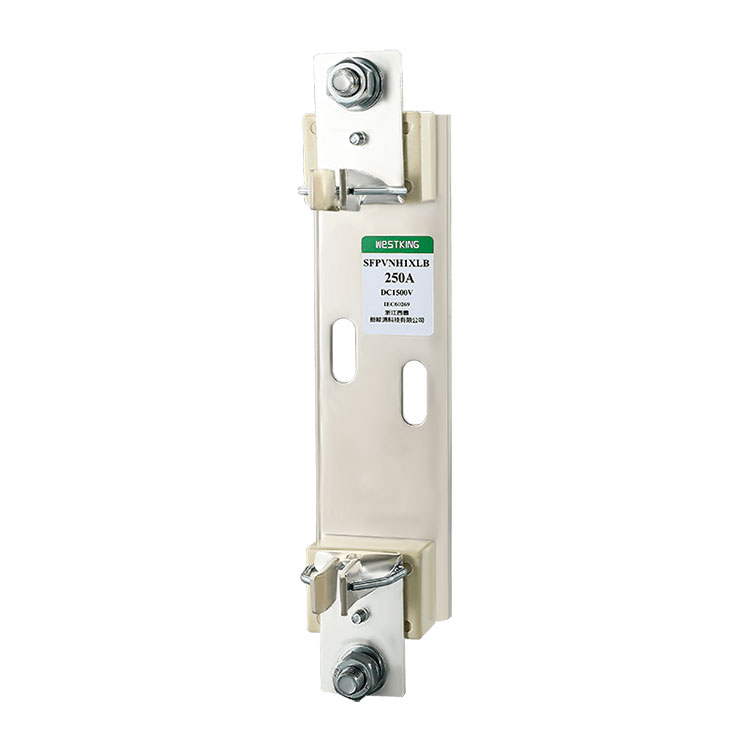

1500Vdc NH1XL PV Fuse Base
Within WESTKING New Energy Technology Co., Ltd.'s photovoltaic fuse-link series , the NH1XL Fuse-base stands tall as a premier offering. Engineered for excellence, this fuse base boasts a 1500VDC voltage rating, embodying the company's commitment to top-tier quality. With a remarkable capacity to handle currents of up to 250A, the NH1XL Fuse-base excels with its high-quality contacts, crafted from T2 copper to minimize heat dissipation during operation. In the realm of solar power generation, WESTKING's unwavering dedication to meticulous electrical protection remains unparalleled.
Send Inquiry
Product Description
The NH1XL Fuse-base, a product in the photovoltaic fuse-link series from WESTKING New Energy Technology Co., Ltd., has a voltage rating of 1500VDC and is one of the company's high-quality fuse bases. With a current-bearing capacity of up to 250A, the NH1XLFuse-base features a high-quality contact and uses T2 copper to ensure minimal heat loss during operation. WESTKING consistently focuses on the electrical protection details in the solar power generation field.
Technical data
| ?Rated voltage: | 1500Vdc |
| ?Rated currents: | 250A |
| ?Product Size: | NH1XL gPV fuses links |
| ?Rated breaking capacity: | 50kA |
| ?Storage temperature: | -40°C ... 90°C |
| ?Operating temperature : | -40°C ... 85°C |
| ?Rated impulse withstand voltage: | 12kV |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
IEC/EN 60269-6
KEY FEATURES/ADVANTAGES
The metal base plate is connected by insulating components
High elasticity spring clip
Meet 48 hour salt spray test
Can withstand torque requirements higher than standard
APPLICATIONS
Photovoltaic applications up to 1500VDC
Protection at the PV string/array level
Inverter applications
Combiner box operation
Certifications
is09001 iatf16949
Origin
China
ELECTRICAL CHARACTERISTICS
| type | led indicator | Net weigh | packing |
| SFPVNH1XLB | NO | 590g | 1pc/box |
Dimensions (mm)
Compatible FUSE link
Model and significance
