10/14x85 GPV 1500VDC Fuse Link
  • 10/14x85 GPV 1500VDC Fuse Link10/14x85 GPV 1500VDC Fuse Link
  • 10/14x85 GPV 1500VDC Fuse Link10/14x85 GPV 1500VDC Fuse Link
  • 10/14x85 GPV 1500VDC Fuse Link10/14x85 GPV 1500VDC Fuse Link

10/14x85 GPV 1500VDC Fuse Link

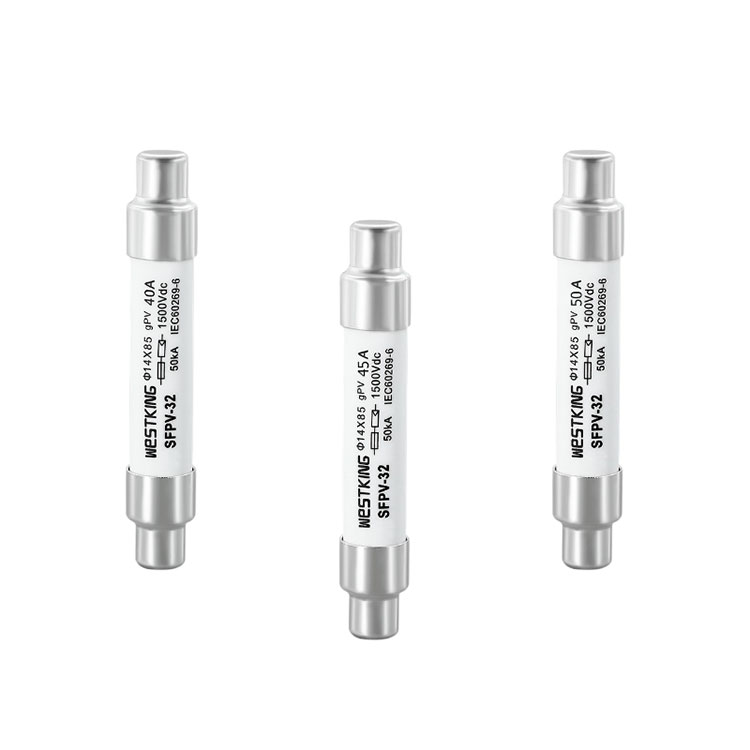

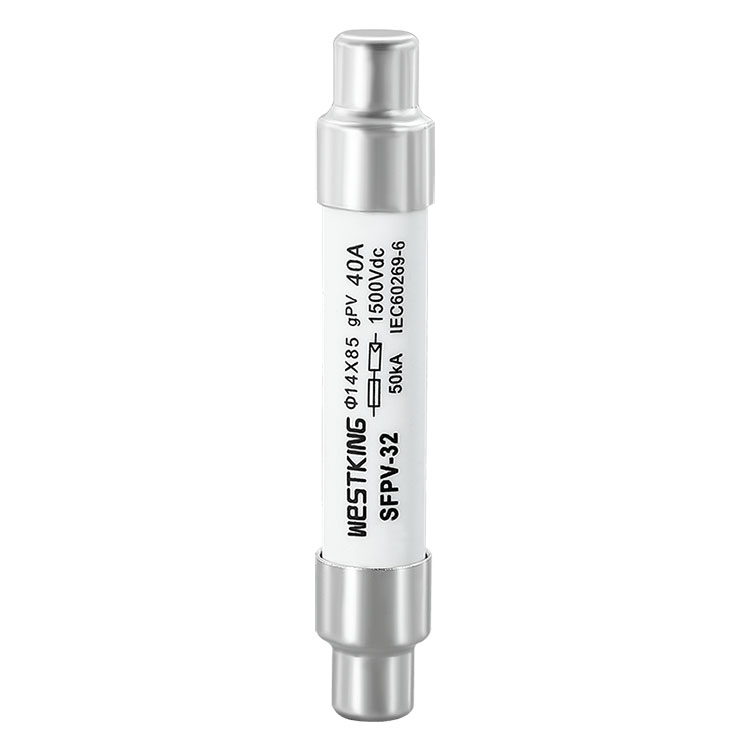

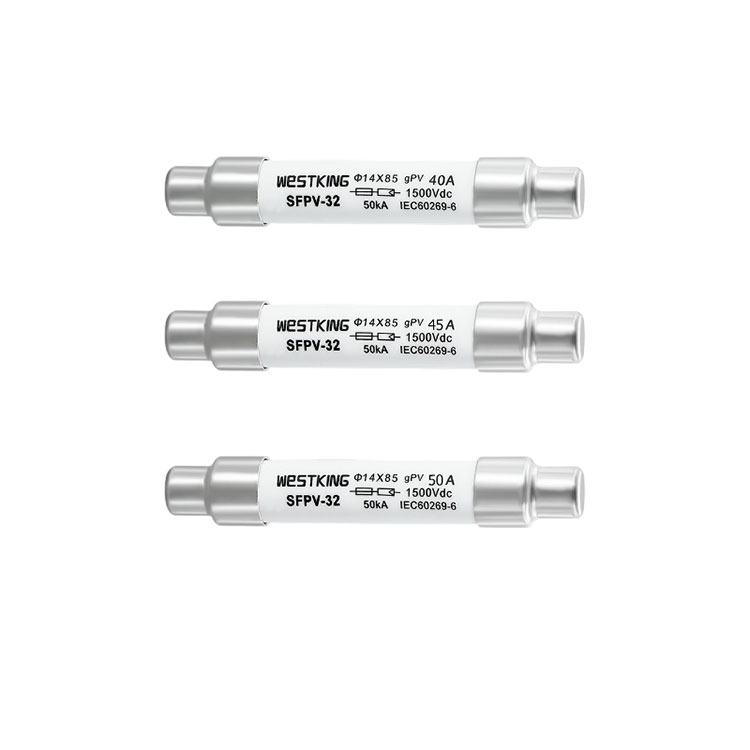

The introduction of the 10/14x85mm gPV 1500VDC Fuse Link 10/14x85 GPV 1500VDC Fuse Link marks an extension of the current expansion within the 10X85mm Fuse links series. With a maximum rated current of 50A, it effectively caters to the requirements of numerous large-scale photovoltaic power plants. All fuse links share a uniform length of 85mm and utilize the SFPV-32BX photovoltaic base, ensuring seamless compatibility with the existing 10X85mm series.

Send Inquiry

Product Description

The 10/14x85mm gPV 1500VDC Fuse Link 10/14x85 GPV 1500VDC Fuse Link is an extension of the 10X85mm Fuse links current expansion, with a maximum rated current of 50A. This meets the demands of many large-scale photovoltaic power plants. All fuse links have a length of 85mm and use the same photovoltaic base, SFPV-32BX, as the 10X85mm


10/14x85 GPV 1500VDC Fuse Link Technical data

?Rated voltage: 1500Vdc or 1200Vdc
?Rated currents: 25A...50A
?Utilization category: gPV
?Rated breaking capacity: 50 kA
?Minimum interrupt rating: 1,35·In
?Non fusing current: 1,13·In
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C

?If the ambient temperature is higher than 25°C, please refer to WESTKING'S fuse temperature correction coefficient chart and user manual.


10/14x85 GPV 1500VDC Fuse Link Standards

IEC/EN 60269-1 Fuse links – general requirements

IEC/EN 60269-6 Fuse links for solar photovoltaic systems

UL248-19 Photovoltaic fuse links

RoHS Compliant


10/14x85 GPV 1500VDC Fuse Link KEY FEATURES/ADVANTAGES

Low-multiplier current overload can be triggered

Uses high-alumina ceramic

Low power consumption

The fuse element adopts Toshiba from Japan, with stable fusing characteristic


10/14x85 GPV 1500VDC Fuse Link APPLICATIONS

Offers inline protection for PV modules

Ideal for combiner box applications

Suitable for use in all photovoltaic systems

Provides string/array-level protection for PV systems

Works seamlessly with inverters and battery charge controller


Certifications

is09001 iatf16949

TUV CE


Origin

China


10/14x85 GPV 1500VDC Fuse Link ELECTRICAL CHARACTERISTICS

Rated Current I2t (A2s) Power loss(w) 1.0 In Net weight
Melting Clearing
25A 5 16 0.9 31g
30A 380 1400 5.6
32A 390 1800 6.3
35A 410 2000 7.4
40A 460 2450 8.5
45A 530 3200 9.6
50A 600 3800 10.5


t-I characteristics


Dimensions (mm)


Compatible FUSE bases


temperature correction coefficient chart


Description:

1.The fuse operates normally within the temperature range of -5°C to 40°C, and no additional correction is required.

2.The allowable usage conditions are -40°C to 85°C.

3.Within the range of allowable usage conditions, refer to this table.


In the field of solar photovoltaic power generation and large-scale photovoltaic power plants, WESTKING's high-quality fuses play a crucial role. As a representative of China's fuse industry, WESTKING offers a series of fuses suitable for photovoltaic systems, providing excellent protection and reliability. These fuses are mainly used to protect photovoltaic modules, inverters, cables, and distribution systems, with fast-fusing characteristics that prevent equipment damage and safety hazards. Moreover, WESTKING fuses have low fusing currents, reducing system failure rates. Large-scale photovoltaic power plants must consider factors such as fuse capacity, rated voltage, and fusing speed when selecting suitable fuses. WESTKING fuses effectively reduce fault losses and improve power generation efficiency. In practical applications, it is necessary to regularly inspect and replace fuses. As the global photovoltaic power generation industry develops, the demand for high-quality fuses will grow. As a leading fuse manufacturer in China, WESTKING will continuously improve product performance to meet the needs of photovoltaic fuses used in more complex working conditions.
